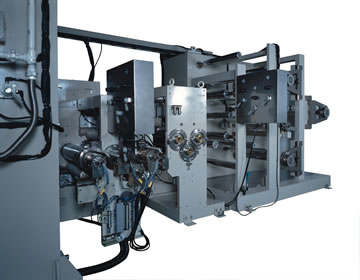

Roll stretching machine
FeaturesThis Roll stretching machine is equipped with Stretching section at room temperature(2 sections), Stretching section up to MAX150℃(3 sectuions) and Heat setting up to Max450℃. |
|
Applications
Battery separators and Packing films, etc. |
Product Description
Capable of stretching materials such as battery separators and packing films by arbitrary ratio in the machine direction(MD).
Property evaluation is possible for battery separators,etc. by the Gurley's air permeability tester in our factory.
Specifications for Test Machine
Specifications of stretching | Stretching at room temprature(2 sections) Stretching up to MAX150℃(3 sections) Heat setting up to MAX450℃ |
Roll working width | 400o |
Wind-off unit | 5 axes(Core size 3 or 6 in.) |
Take-up unit | 3 axes(Core size 3 or 6 in.) |
Speed | 0.5〜10m/min |
Stretching ratio | MAX20 times |
Thickness gauge | Installed(Offline) |
Air permeability tester | Installed(Offline) |
