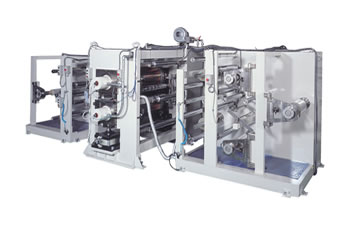

High-temperature Laminator

Features

Self-developed high-temperature rolls are used.
Roll temperature up to a maximum 450Ž
Temperature accuracy of }3Ž(at 450Ž)
Capable of 2 ~ 5 layer lamination
Special surface treatment enables lamination of aluminum foils under high temperatures.
Roll surface strength and roll life have been improved compared to conventional rolls.

High-temperature Laminator

Applications

For FCCL
Lamination of fluorine film and metal foils
Lamination of film and film

Product Description

To meet the needs of industries, the high-temperature laminator can laminate films, metal foils (plates), glass mats, etc.
It can meet other various needs as demanded by application.

Specifications for Test Machine

Base material width Effective width: 500mm Roll width: 800mm
Laminating pressure Max. 5t/total base material width
Roll temperature From room temp. to max. 450Ž
Wind-off unit 5 axes (Core size: 3 in.)
Take-up unit 3 axes (Core size: 3 in.)
Preheating unit Installed.
Capable of simplified lamination test of iron roll + rubber roll
