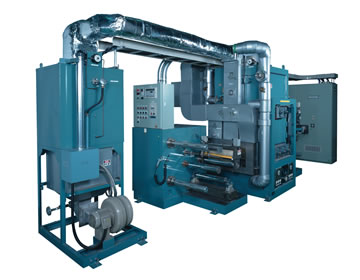

Roller Dryer

Features

Capable of heat treatment up to about 120 minutes at MAX220 ℃ though it is a compact heat treatment machine.

Applications

Annealing and drying of various types of films

Product Description

Capable of heat treatment and drying at the pre and post process of stretching test.

Specifications for Test Machine

Heat treatment length 3.5m
Heat treatment temperature MAX220℃
Roll working width 400mm
Speed 0.03〜0.5m/min
Wind-off unit 1 axis（Core size 3 or 6 in.）
Take-up unit 1 axis（Core size 3 or 6 in.）
